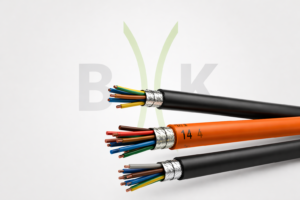

1.2.3 BO-SINGLE HF-MOVE PUR UL

Back

Cables
and wires

EXTRAFLEX CU/PP/PUR

TEMPERATURE RANGE

Flexible application: -30°C +90°C

Fixed installation: -40°C +90°C

WORKING VOLTAGE

1000V

TEST VOLTAGE

4000V

BENDING RADIUS

Flexible application: 6,5 X D - 4 X D (Fixed installation)

Fixed installation: - 4 X D

INSULATION RESISTANCE

At 20°C > 1 GΩ Km

HALOGEN FREE

IEC 60754-1

CONDUCTOR RESISTANCE

Max at 20°C in accordance with IEC 60228 and VDE 0812

FLAME RESISTANCE

IEC 60332-1-2, UL 1581 VW-1, CSA FT1

OIL RESISTANCE

VDE 0473-811-404, UL 1581, IEC 60811-404

UV RESISTANCE

YES

APPROVALS

UL STYLE 2464

Dynamic features
